Customizable Microwave Drying Solutions: Precision Internal Drying for Pulp Molding, Fruits, and Wooden Panels
Λεπτομέρειες:
| Τόπος καταγωγής: | Κίνα |
| Μάρκα: | OSMANUV |
| Πιστοποίηση: | ISO9001 |
| Αριθμό μοντέλου: | Δελτίο ΕΚΑΧ της 16ης Ιουλίου 2006. |
| Έγγραφο: | microwave drying equipment.pdf |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1 σετ |
|---|---|
| Τιμή: | negotiable |
| Συσκευασία λεπτομέρειες: | ξύλινο κουτί |
| Χρόνος παράδοσης: | 30 έως 45 ημέρες |
| Όροι πληρωμής: | T/T |
| Δυνατότητα προσφοράς: | Διαπραγμάτευση |
|
Λεπτομερής ενημέρωση |
|||
| Τρόπος ξήρανσης: | Υπεριώδης ακτίνα - ιάσιμη | Magnetron μέθοδος ψύξης: | Ψύξη ανεμιστήρα |
|---|---|---|---|
| Εμφάνιση: | ζώνης αιχμής | σύστημα μεταφοράς: | Σερβοκινητήρας |
| Συνδετήρας: | Qingdao | ταχύτητα παραγωγής: | 15-25m/λεπτό |
| Χρήση: | Ξήρανση | Υλικό θαλάμου: | Ανοξείδωτο ατσάλι |
Περιγραφή προϊόντων
Customizable Microwave Drying Solutions: Precision Internal Drying for Pulp Molding, Fruits, and Wooden Panels

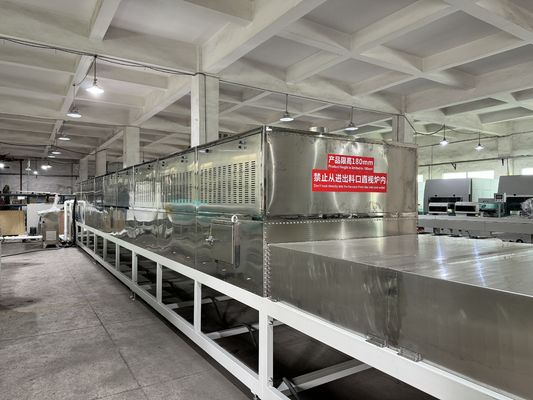

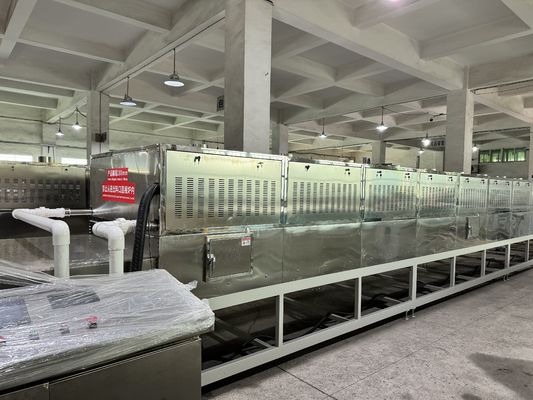

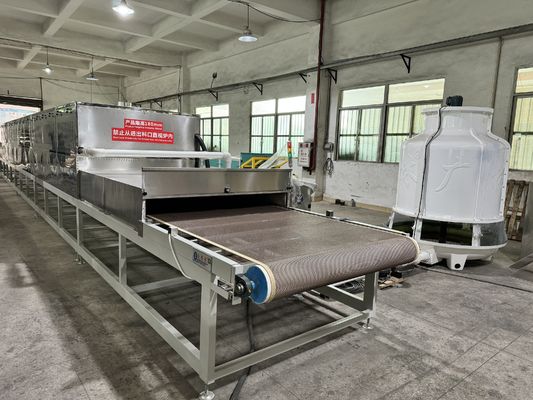

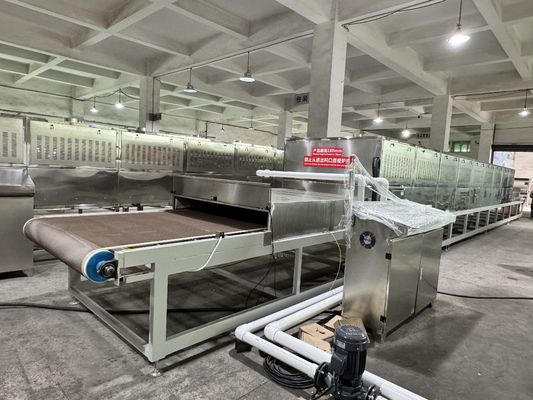

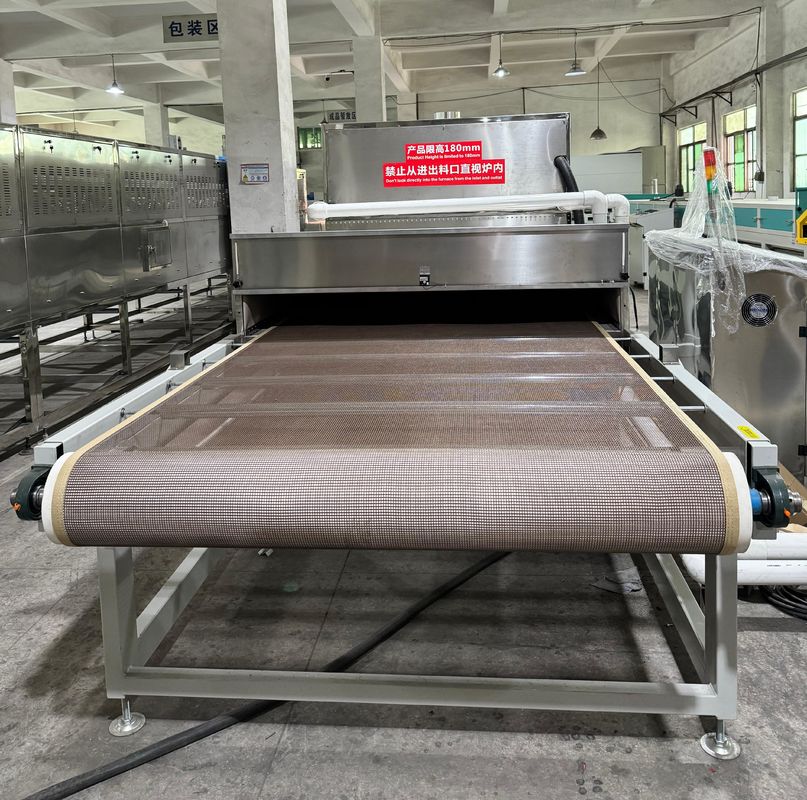

Composition of Production Line
The microwave drying production line consists of the following core components: microwave generator, conveyor belt system, temperature and humidity control unit, cooling section, electrical control cabinet, safety protection devices, and exhaust system. All components feature a modular design, supporting customizable layouts and integration to suit diverse production requirements.
Product Description
This microwave drying equipment utilizes microwave energy to directly interact with the internal moisture of materials, enabling rapid and uniform drying. It is particularly suitable for the internal drying of pulp-molded products (e.g., packaging items), fruits (e.g., dehydrated slices), and furniture boards (e.g., particleboard, MDF). With intelligent control systems, it offers high energy efficiency, significantly reducing drying time while improving product quality. The design supports customizable power and dimension configurations to ensure compatibility with various production environments.
Technical Parameters
| Parameter | Description | Value / Range |
|---|---|---|
| Model Series | Standard models with customizable options | MW-Dry-Pro Series |
| Microwave Power | Adjustable output for flexible drying processes | 30 kW - 100 kW (Customizable) |
| Drying Chamber Dimensions | Customizable length, width, and height | L: 2000-5000 mm, W: 1000-2000 mm, H: 1500-2500 mm |
| Temperature Range | Precision-controlled for internal material drying | 40°C - 150°C |
| Conveyor Speed | Variable speed for different material throughput | 0.5 - 10 m/min |
| Moisture Reduction Rate | Performance varies by material | 10% - 30% per hour (typical) |
| Power Supply | Standard with customizable voltage options | 380V/50Hz or 220V/60Hz |
| Control System | PLC with touchscreen HMI, programmable drying curves | Supports customizable automation protocols |
| Safety Standards | Overheat protection, emergency stop, radiation shielding | Complies with CE, ISO standards |
| Net Weight | Approximate weight for shipping estimates | 1000 kg - 3000 kg (varies with configuration) |
Application
This equipment is widely used in the following sectors:
-
Pulp Molding: Internal drying of molded pulp products (e.g., trays, cartons) to enhance strength and reduce cycle time.
-
Fruit Processing: Internal drying of fruit pieces or whole fruits for preservation, locking in nutrients and color.
-
Furniture & Board Manufacturing: Uniform internal drying of wooden panels and composite boards to prevent warping and cracking.
The system supports customizable adjustments for other materials such as ceramics, textiles, and non-woven fabrics.
Customization
We provide comprehensive customizable services to meet specific client needs, including:
-
Tailored microwave power and chamber dimensions to match production capacity.
-
Customizable conveyor materials (e.g., mesh, belt) and speed profiles for delicate products.
-
Upgraded control systems with IoT connectivity or full automation integration.
-
Customizable housing, finishes, and safety features to match factory layouts and standards.
Feature
-
High Efficiency & Energy Saving: Direct internal heating reduces energy loss by over 30% compared to conventional methods.
-
Uniform Drying: Penetrative microwaves ensure consistent internal moisture removal, preventing case-hardening.
-
Intelligent Control: PLC system with touchscreen allows for customizable drying programs and real-time monitoring.
-
Safety & Compliance: Built with multiple safety interlocks and meets international certification standards.
-
Easy Integration: Modular design allows for quick installation into new or existing production lines.
Support and Services
We are committed to full-cycle customer support:
-
Installation & Commissioning: On-site setup and operator training by expert engineers.
-
Warranty & Maintenance: 1-year warranty, lifelong technical support, and scheduled maintenance plans.
-
Spare Parts Supply: Fast delivery of customizable spare part kits.
-
Consultation & Upgrade: Free technical consultation and future upgrade services for evolving needs.
Packing and Shipping
-
Packing: Securely packed in reinforced wooden crates with waterproof and shock-absorbing materials.
-
Shipping: Arranged via sea or air freight globally. Delivery schedules and Incoterms are customizable based on client requirements. All necessary documentation (manual, certificates, customs forms) is provided.
FAQ
-
Q: Is the equipment suitable for high-moisture materials?
A: Yes, it is designed for efficient internal water removal. Drying parameters can be customized for different initial moisture contents. -
Q: What is the typical drying time?
A: Drying time depends on the material and load. For example, pulp molding may take 10-30 minutes. Cycles are fully customizable via the control panel. -
Q: Can it be integrated into a fully automated production line?
A: Absolutely. The system features customizable I/O interfaces (e.g., PROFIBUS, Ethernet) for seamless integration with factory automation (PLC/SCADA) systems. -
Q: What is the minimum order quantity (MOQ)?
A: We accept single-unit orders and offer volume discounts for customizable batch configurations. -
Q: How is uniform heating guaranteed for large panels?
A: Through a combination of a multi-magnetron array, a customizable waveguide design, and a rotating/turntable mechanism (optional), we ensure even microwave distribution for large or irregular items.
