Compact Food Packaging UV Surface Sterilizer | Modular Design Supports Customization

Λεπτομέρειες:

Τόπος καταγωγής: Κίνα
Μάρκα: OSMANUV
Πιστοποίηση: ISO9001
Αριθμό μοντέλου: OSM-SJ-600

Πληρωμής & Αποστολής Όροι:

Ποσότητα παραγγελίας min: 1 ΣΕΤ
Τιμή: Διαπραγματεύσιμος
Συσκευασία λεπτομέρειες: ξύλινο κουτί
Χρόνος παράδοσης: 30~45 ημέρες
Όροι πληρωμής: T/T
Δυνατότητα προσφοράς: Διαπραγμάτευση
Καλύτερη τιμή Επικοινωνία

Λεπτομερής ενημέρωση

Χαρακτηριστικά ασφαλείας: Προστατευτικό κάλυμμα με διακόπτη κλειδώματος Όνομα προϊόντος: Μηχανή ακτινοβολίας UV
Τύπος: UV μηχανή αποστείρωσης Ασφάλεια επιστρώματος: Υψηλή ασφάλεια
Πεδίο ελέγχου του χρονόμετρου: 0-99 λεπτά Τροφοδοτικό: 220v/50hz
Λαμπτήρας αποστείρωσης UV: 30w σωλήνας λαμπτήρα (20 τμχ) Τύπος Λάμπας: λαμπτήρας υδραργύρου

Περιγραφή προϊόντων

Compact Food Packaging UV Surface Sterilizer | Modular Design Supports Customization

This UV sterilization equipment is specifically designed for disinfecting food packaging surfaces (such as trays, containers, films, etc.) using ultraviolet-C (UV-C) germicidal irradiation. It effectively eliminates up to 99.9% of bacteria, molds, and viruses without chemicals. The system is fully customizable in configuration, conveyor speed, UV lamp power, and layout to adapt to various production line needs.

Composition of Production Line

  • UV sterilization tunnel with stainless steel housing

  • High-intensity UV-C lamps (or UV-C LEDs)

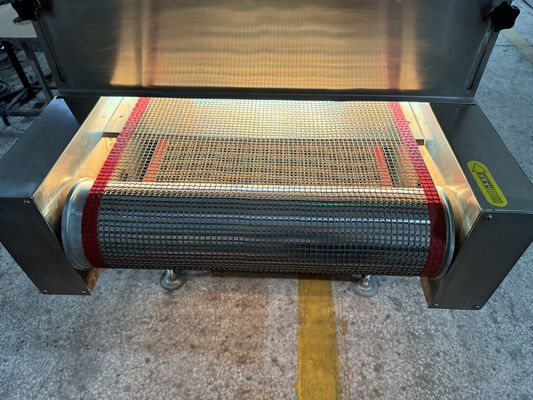

  • Conveyor belt system (adjustable speed)

  • Reflective aluminum chamber for enhanced irradiation

  • Electrical control panel with PLC/HMI

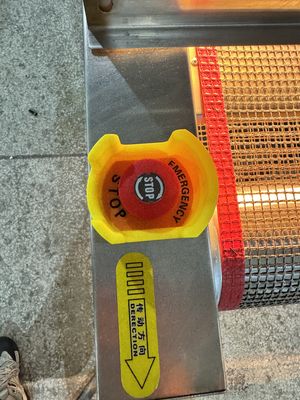

  • Safety sensors (motion detection, UV shield)

  • Optional: pre-cleaning module, cooling system, IoT monitoring

Technical Parameters



Parameter Specification Customizable Options
UV Wavelength 254 nm (185 nm optional) Yes (UVA/UVB/UV-C selectable)
UV Lamp Power 120 W per lamp (standard) 60-300 W per lamp
Conveyor Speed 0-10 m/min Adjustable according to output
Sterilization Efficiency >99.9% against common pathogens Validated per packaging material
Power Supply 220V/50Hz (or 110V/60Hz) Yes
Dimensions (L×W×H) 2000×800×1200 mm (standard) Custom lengths/widths
Material Contact Parts Stainless steel 304/316 Yes (food-grade coatings available)
Control Interface Touchscreen PLC with preset programs Custom software/logic

Application

  • Disinfection of pre-formed food containers (plastic, glass, metal)

  • Surface sterilization of packaging films/lids before sealing

  • Integration into filling/packaging lines for dairy, beverages, ready-to-eat foods

  • Use in pharmaceutical packaging cleaning processes

Customization

  • Tailored conveyor width/length to fit existing production lines

  • Adjustable UV intensity and exposure time based on packaging material

  • Custom safety interlocks and compliance with regional regulations

  • Optional integration with air purification or ozone removal systems

Feature

  • Energy-saving UV lamps with long service life (>9000 hours)

  • Real-time UV intensity monitoring and automatic adjustment

  • Modular design for easy expansion or reconfiguration

  • Compliance with FDA, CE, and ISO 9001 standards

Support and Services

  • Free preliminary production line assessment

  • On-site installation and training available

  • 24/7 remote technical support

  • Spare parts and maintenance packages

Packing and Shipping

  • Weatherproof wooden crate packaging

  • Fumigation-free materials for international shipping

  • Standard delivery: 15-30 days after confirmation (custom designs may require longer)

FAQ

  1. Can the UV intensity be adjusted for different packaging materials?
    Yes, the system is customizable with adjustable UV output and conveyor speed.

  2. Is the equipment suitable for moist or uneven packaging surfaces?
    Special reflective chamber designs can be customized to ensure uniform irradiation.

  3. How is safety ensured during operation?
    Automatic shut-off when the tunnel is opened, and UV-blocking viewing windows are standard.

  4. Can it be integrated into an automated production line?
    Yes, we provide customized PLC interfaces for seamless integration.

  5. What is the lead time for a fully customized system?
    Typically 4-8 weeks depending on technical requirements.
