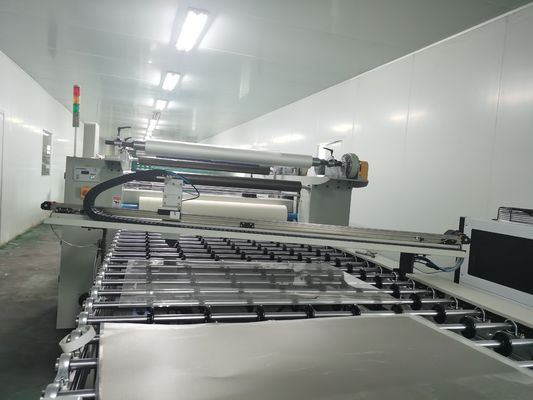

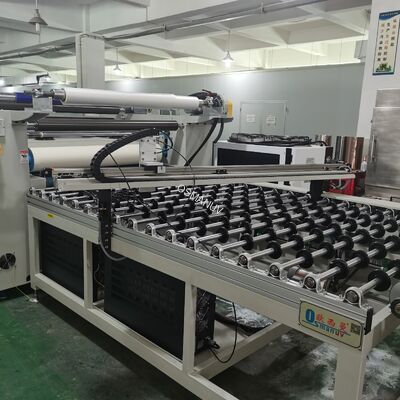

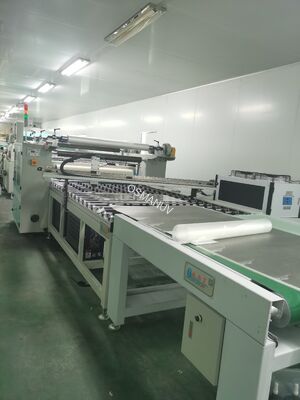

Furniture Board Wear-Resistant Film Laminating Production Line with High Efficiency
Λεπτομέρειες:
| Τόπος καταγωγής: | Κίνα |
| Μάρκα: | OSMANUV |
| Πιστοποίηση: | ISO9001 |
| Αριθμό μοντέλου: | Δελτίο ΕΚΑΧ αριθ. |
| Έγγραφο: | film Lamintaing.pdf |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1 σετ |
|---|---|
| Τιμή: | Διαπραγματεύσιμος |
| Συσκευασία λεπτομέρειες: | Ξύλινη συσκευασία |
| Χρόνος παράδοσης: | 40 ημέρες |
| Όροι πληρωμής: | T/t |
| Δυνατότητα προσφοράς: | Διαπραγμάτευση |
|
Λεπτομερής ενημέρωση |
|||
| Όνομα προϊόντος: | Επίπεδα επίπλων Ανθεκτική στη γραμμή παραγωγής πλαστικοποίησης μεμβράνης με υψηλή απόδοση | Δυναμικό: | 380V, 220V, 220V/110V, 380V/50Hz, 380V/220V |
|---|---|---|---|
| Κατάσταση: | Νέος | Εγγύηση: | 1 έτος |
| Τύπος: | Μηχανή πλαστικοποίησης, εργοστάσιο πλήρως αυτόματη θερμική μηχανή φωτισμού φιλμ | Εφαρμογή: | Μηχανήματα & υλικό, εμπορεύματα, ιατρικά, χημικά, τρόφιμα |
| Εξουσία: | 12kW, 50kW, 3kW, 2,5kW, 220V 50Hz | ||
| Επισημαίνω: | furniture board laminating machine with warranty,wear-resistant film laminating production line,high efficiency film laminating machine |
||
Περιγραφή προϊόντων
Furniture Board Wear-Resistant Film Laminating Production Line with High Efficiency
1. Composition of Production Line
- Automatic board loading/unloading system
- Surface pretreatment unit (cleaning/plasma treatment)
- Precision adhesive application system

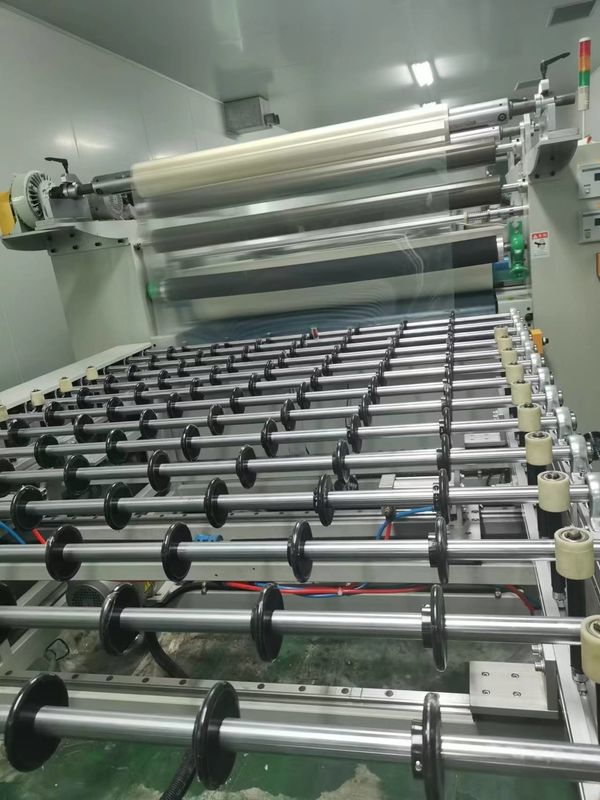

- High-pressure film laminating unit
- CNC trimming and edge finishing system
- Quality inspection with vision system
- Centralized PLC control with IoT connectivity
2. Product Description
This automated film laminating production line specializes in applying wear-resistant decorative films to various furniture boards (MDF, particle board, plywood). It ensures perfect film adhesion with scratch and stain resistance, making it ideal for high-quality furniture manufacturing.
3. Technical Parameters:
| Parameter Category | Specification | Notes |
|---|---|---|
| Max. Board Width | 0-1320 mm | Customizable to specific requirements |
| Production Speed | 1-20 m/min | Adjustable based on material |
| Laminating Accuracy | ±0.15 mm | Laser guiding system |
| Operating Pressure | 50-150 tons | Customizable pressure settings |
| Temperature Control | 50-200°C ±1°C | PID precision control |
| Power Requirement | 380V/50Hz/100kW | Customizable voltage options |
4. Application
- Office furniture manufacturing
- Kitchen cabinet production
- Wardrobe and storage systems
- Commercial furniture applications
5. Customization
- Width Options: Customizable from 600mm to 2800mm
- Film Compatibility: Adaptable for PVC, PP, PET, decorative films
- Automation Level: From semi-auto to fully robotic systems
- Special Features: Optional embossing or texture patterns
6. Feature
- High Efficiency: Automatic feeding and stacking systems
- Precision Control: CNC-controlled temperature and pressure
- Quality Assurance: Integrated vision inspection system
- Energy Saving: Heat recovery system reduces energy consumption
7. Support and Services
- Installation and commissioning supervision
- Comprehensive operator training
- 24/7 technical support with remote monitoring
- 18-month warranty on main components
8. Packing and Shipping
- Heavy-duty export packaging
- Weatherproof wooden crates
- Professional logistics planning
- Worldwide shipping available
9. FAQ
- Q: What is the minimum order quantity?
A: We provide customizable solutions from single machines to complete production lines. - Q: Can the line handle different board materials?
A: Yes, the system is customizable for MDF, particle board, plywood, and other substrates.
Θέλετε να μάθετε περισσότερες λεπτομέρειες σχετικά με αυτό το προϊόν
