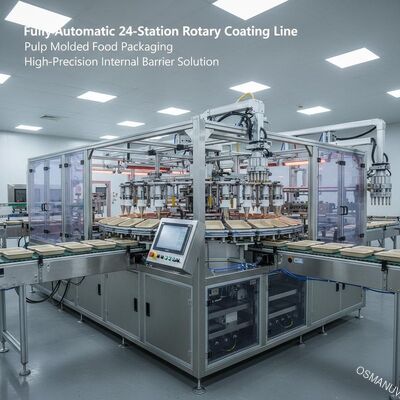

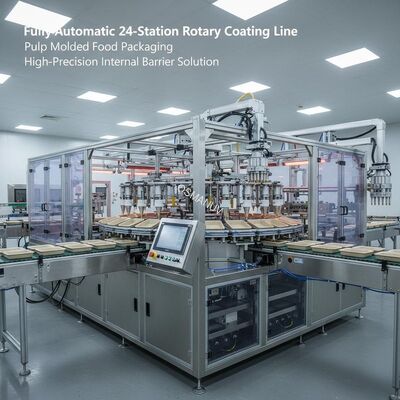

Fully Automatic 24-Station Rotary Coating Line for Pulp Molded Food Packaging - High-Precision Internal Barrier Solution
Λεπτομέρειες:
| Τόπος καταγωγής: | ΚΙΝΑ |
| Μάρκα: | Osmanuv |
| Πιστοποίηση: | CE |
| Αριθμό μοντέλου: | OSM-XT-1006T |
| Έγγραφο: | PULP MOLDING AUTOMATIC SPIN...NE.pdf |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1 σετ |
|---|---|
| Τιμή: | negotiable |
| Συσκευασία λεπτομέρειες: | Ξύλιμο κουτί |
| Χρόνος παράδοσης: | 45 ημέρες |
| Όροι πληρωμής: | T/t |
| Δυνατότητα προσφοράς: | Διαπραγμάτευση |
|
Λεπτομερής ενημέρωση |
|||
| Εφαρμογή: | Επένδυση | Ηλεκτρικοί κυλίνδροι: | 164mm*1450mm |
|---|---|---|---|
| Τύπος: | μηχανή επίστρωσης | Ξήρανση: | Curing UV ή IR |
| Κατεύθυνση πορείας: | Από αριστερά προς δεξιά | Εγγύηση: | 1 έτος |
| Αυτοματοποίηση επικαλύψεων: | Υψηλή αυτοματοποίηση | ||
Περιγραφή προϊόντων
Fully Automatic 24-Station Rotary Coating Line for Pulp Molded Food Packaging - High-Precision Internal Barrier Solution
Keywords: pulp molding coating line, automatic internal coating, food grade coating machine, customizable rotary coating system
Composition of Production Line:
Automated loading system, precision rotary coating units, multi-zone thermal curing oven, UV drying module, quality inspection station, robotic unloading system.
Product Description:
This fully automatic rotary coating line applies uniform, food-safe internal coatings to pulp molded products (e.g., food containers, tableware). It ensures excellent water/oil resistance and compliance with FDA/EFSA standards.
Technical Parameters:
| Parameter | Specification |
|---|---|
| Coating Thickness | 0.03-0.25 mm (adjustable) |
| Line Speed | 10-40 cycles/min (customizable) |
| Power Supply | 380V/50Hz/3Phase (configurable) |
| Drying Method | Thermal/UV hybrid (customizable) |
| Control System | Siemens PLC + 15" HMI with IoT connectivity |
| Coating Material | Water-based acrylics, PFAS-free (customizable) |
| Footprint | ~20m x 4m x 3m (customizable layout) |
Application:

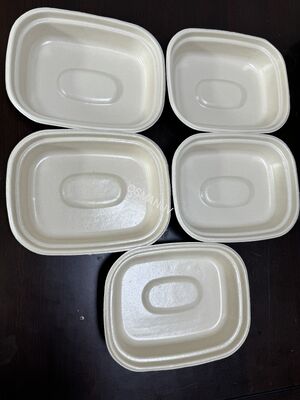

Internal coating for pulp molded food packaging (clamshells, plates, bowls), egg trays, and industrial packaging.
Customization:
Fully customizable coating thickness, line speed, drying method, and material compatibility to meet specific production requirements.
Feature:
-
100% coating coverage guarantee
-
Energy-saving heat recovery system
-
AI-based defect detection
-
Quick-change mandrels for different products
Support and Services:
Installation supervision, operator training, 24/7 remote support, annual maintenance contracts.
Packing and Shipping:
Export-standard wooden crates, waterproof wrapping, FOB/CIF terms available.
FAQ:
Q: Can it handle different product sizes?
A: Yes, the line is customizable with quick-change fixtures for various dimensions.
