High-Efficiency Film Laminating Machine for Metal Sheet | Customizable Protective Film Coating Line
Λεπτομέρειες:
| Τόπος καταγωγής: | ΚΙΝΑ |
| Μάρκα: | OSMANUV |
| Πιστοποίηση: | ISO9001 |
| Αριθμό μοντέλου: | OSM-FMJ-1320Ⅰ |
| Έγγραφο: | film Lamintaing.pdf |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1 σετ |
|---|---|
| Τιμή: | negotiable |
| Συσκευασία λεπτομέρειες: | Ξύλιμο κουτί |
| Χρόνος παράδοσης: | 30 έως 45 ημέρες |
| Όροι πληρωμής: | T/t |
| Δυνατότητα προσφοράς: | Διαπραγμάτευση |
|
Λεπτομερής ενημέρωση |
|||
| Die Model: | Τ-κύβος | Συνολική ισχύς: | 25 KW |
|---|---|---|---|
| Πίεση: | 4,9-25Mpa | Διάρκεια ζωής: | Περισσότερα από 10 χρόνια |
| Τύπος αναδίπλωσης: | Αυτόματο | Μέθοδος διατροφής: | Τριβή |
| Μέγιστο πλάτος: | 1050mm | Με λειτουργία κοπής: | Με |
Περιγραφή προϊόντων

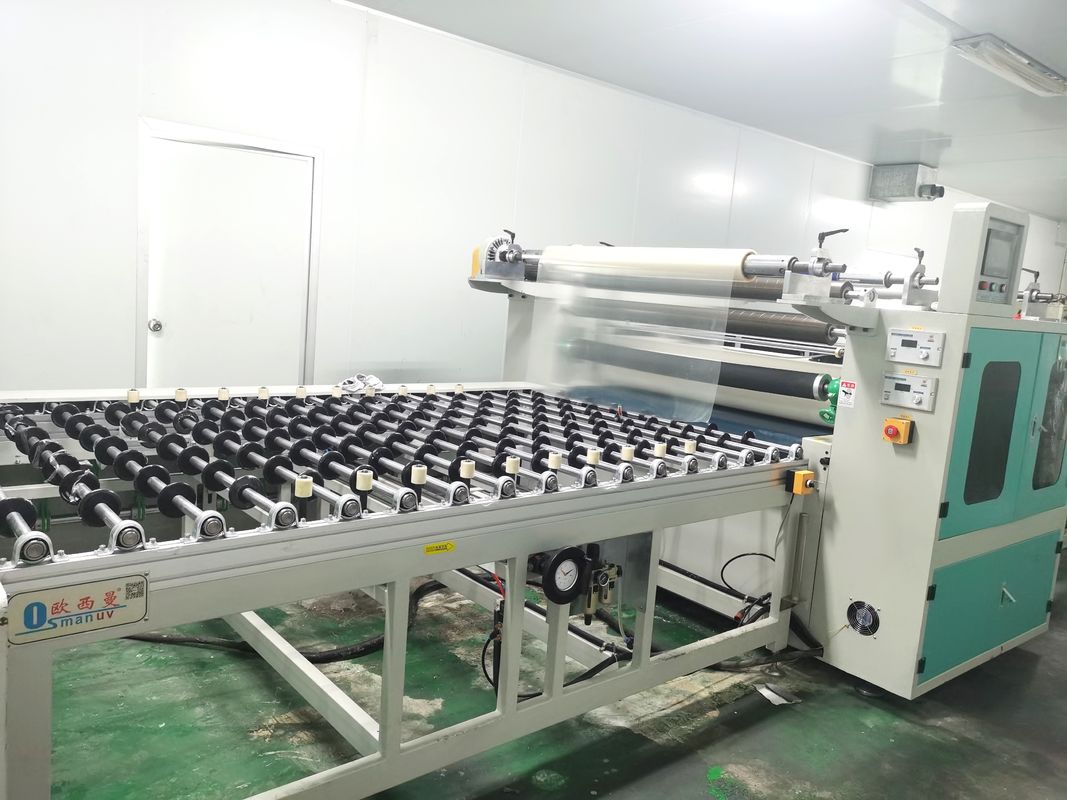

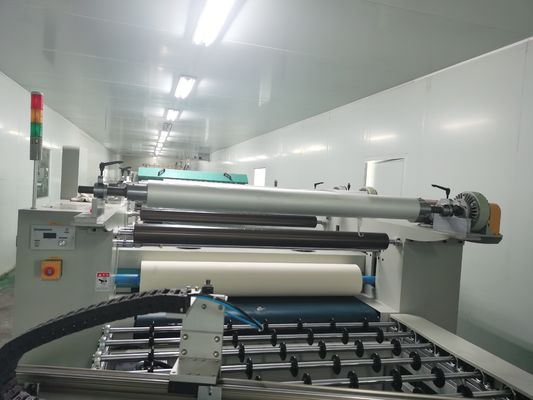

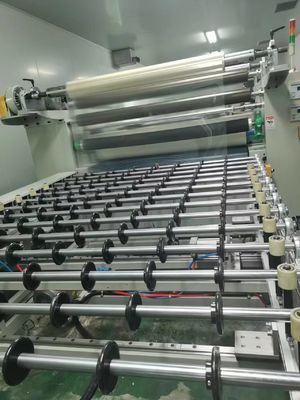

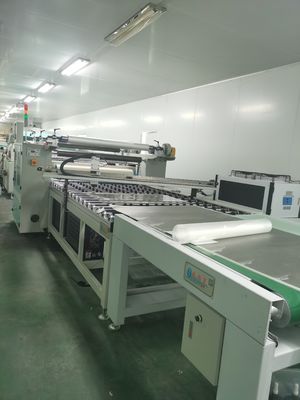

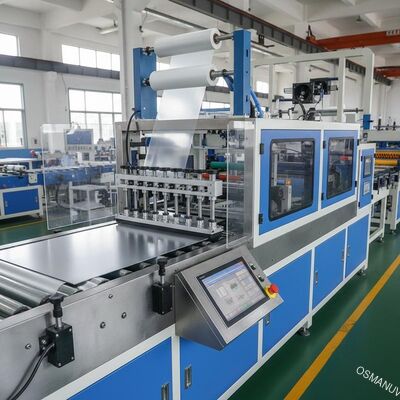

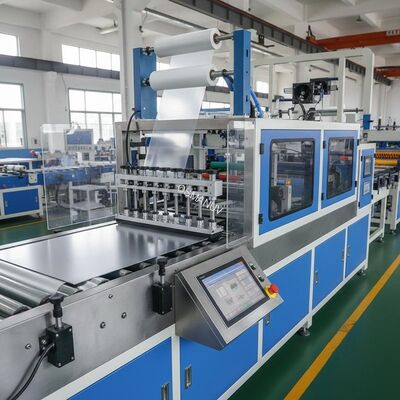

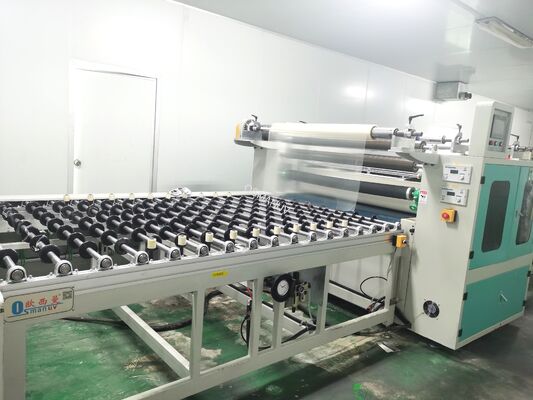

High-Efficiency Film Laminating Machine for Metal Sheet | Customizable Protective Film Coating Line
Composition of Production Line
-
Automatic feeding system
-
Precision laminating unit (roller type)
-
Tension control system
-
Protective film unwinding unit
-
Automatic cutting & stacking system
-
PLC touch screen control
Product Description
This metal sheet laminating machine is engineered for high-precision film coating on stainless steel, aluminum, and galvanized panels. It ensures a bubble-free, wrinkle-free finish while protecting surfaces from scratches during handling and transportation. The line is fully customizable based on sheet size, film material, and production capacity.
Technical Parameters
| Parameter | Specification |
|---|---|
| Max Sheet Width | 1300mm (customizable: 600–1600mm) |
| Max Sheet Thickness | 0.3–2.0mm |
| Laminating Speed | 5–25m/min (adjustable) |
| Film Material | PE, PET, PVC protective film |
| Control System | PLC + HMI Touch Screen |
| Power Supply | 380V, 50Hz, 3 Phase |
| Operator Requirement | 1–2 persons |
Application
Ideal for:
-
Metal sheets (stainless steel, aluminum, galvanized)
-
Pre-painted steel panels
-
Interior or exterior architectural panels
-
Appliance panel protection
Customization
-
Sheet size
-
Film material compatibility
-
Speed & power capacity
-
Add-on: Pre-cleaning station, static eliminator
Features
-
Non-contact film pressing to avoid surface scratches
-
High-speed lamination with edge-alignment control
-
Quick changeover mechanism for different film types
-
Optional hot/cold lamination
-
Fully customizable layout & capacity
Support and Services
-
24/7 online technical support
-
On-site installation & training
-
12-month warranty with lifetime maintenance service
-
Free upgrade consultation
Packing and Shipping
-
Fumigation-free wooden case packing
-
Shipped via sea/air freight
-
Lead time: 20–30 working days after order confirmation
-
Insurance and tracking provided
FAQ
Q1: Can this machine handle different sheet sizes?
Yes, the machine is customizable for various widths and thicknesses.
Q2: What if the protective film has different adhesive strength?
Our tension control system adapts to different film tack levels.
Q3: Do you offer overseas support?
Yes, we provide global service & online troubleshooting.
