24 Station Automated Spin Coating Line for Waterproof Pulp Molded Tableware Coating
Λεπτομέρειες:
| Τόπος καταγωγής: | Κίνα |
| Μάρκα: | OSMANUV |
| Πιστοποίηση: | ISO9001 |
| Αριθμό μοντέλου: | OSM-GL-3200W, OSM-SLJ-XZ3200A, OSM-XT-3200T, OSM-IR-2400T |
| Έγγραφο: | Version 2.0 of 24-station s...on.pdf |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1 σετ |
|---|---|
| Τιμή: | negotiable |
| Συσκευασία λεπτομέρειες: | Ξύλινη συσκευασία |
| Χρόνος παράδοσης: | 55days |
| Όροι πληρωμής: | T/T |
| Δυνατότητα προσφοράς: | Διαπραγμάτευση |
|
Λεπτομερής ενημέρωση |
|||
| Συνολική ισχύς: | 13kW | Μέγεθος προϊόντος: | διάμετρος 350-420mm |
|---|---|---|---|
| Ταχύτητα περιστροφής: | Μέγιστη 1400 rmp/1 λεπτό | Λειτουργία επίστρωσης: | αδιάβροχο, αδιάβροχο, αδιάβροχο, ανθεκτικό σε υψηλές θερμοκρασίες, ανθεκτικό στο κόλλημα |
| Παρέχεται υπηρεσία μετά την πώληση: | Τηλεοπτική τεχνική υποστήριξη, σε απευθείας σύνδεση υποστήριξη, υπερπόντια υποστήριξη τρίτων διαθέσι | Αυτόματος βαθμός: | Αυτόματο, ημιαυτόματο, χειροκίνητο, άλλο |
| Εγγύηση: | 1 έτος | Κατάσταση: | ΝΕΟ |
| Επισημαίνω: | 24 station automated spin coating line,automated pulp molding coating machine,waterproof tableware spin coating machine |
||
Περιγραφή προϊόντων
24 Station Automated Spin Coating Line for Waterproof Pulp Molded Tableware Coating
Product Description:

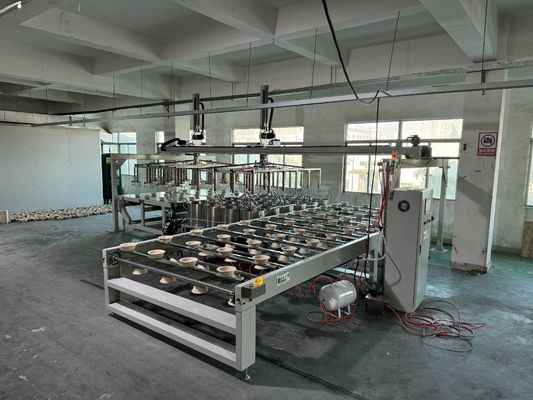

This fully automated 24-station spin coating line is specifically engineered for applying uniform, waterproof coatings to pulp molded tableware such as plates, bowls, and food containers. The system integrates a double-station gantry robot for high-speed loading/unloading, 24 precision spin coating devices for consistent 360-degree coverage, and a 24-meter IR drying tunnel for rapid curing. This complete line ensures a high-quality, food-safe barrier that enhances product durability and liquid resistance.
Composition of the Line:
-
6.4 meters Pre-conveyor
-

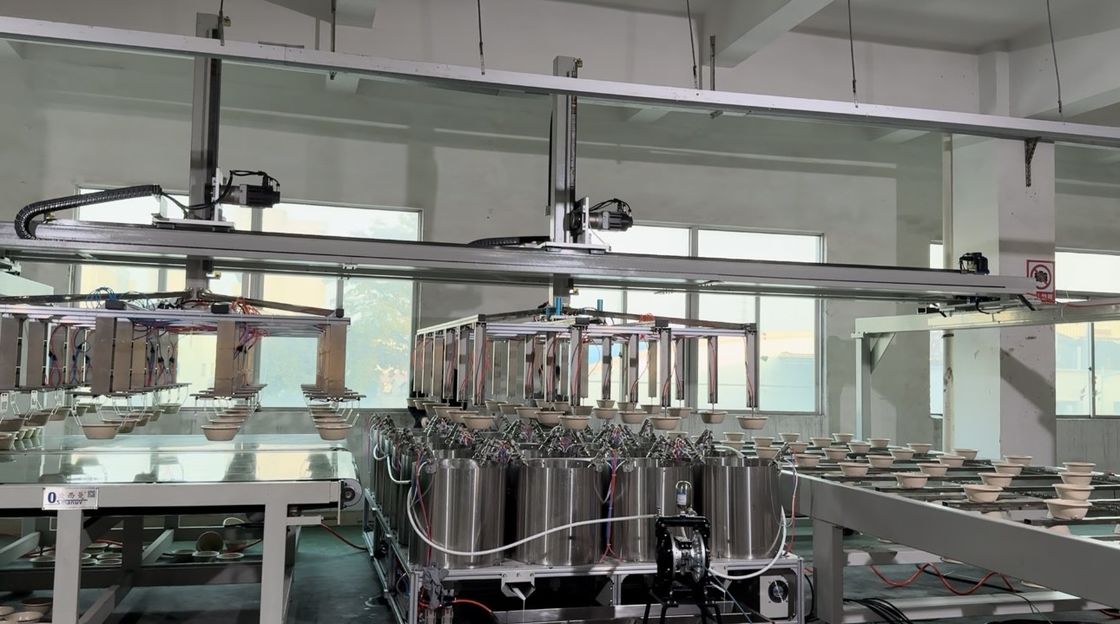

Double-station Gantry Robot
-

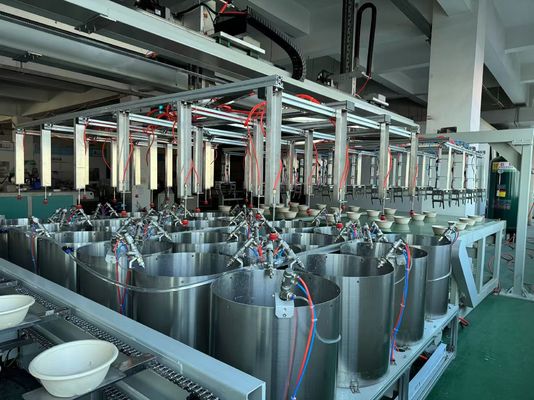

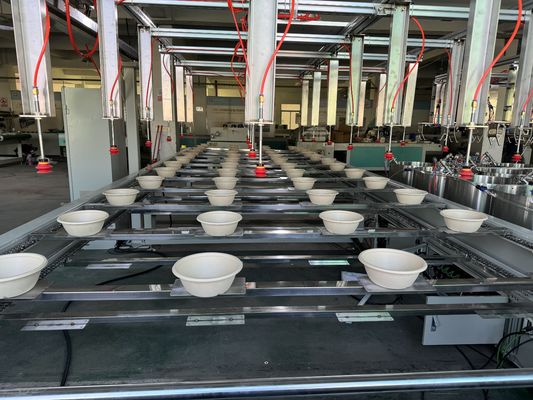

24-station Automatic Spin Coating Device
-

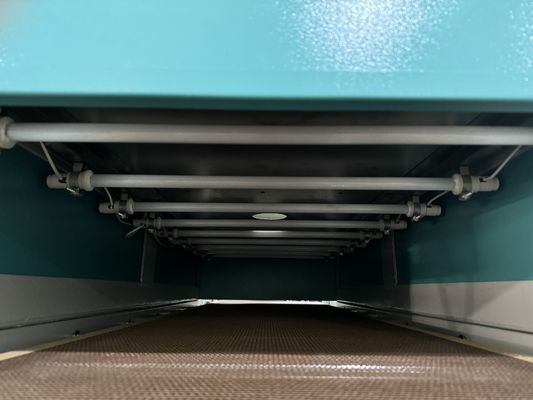

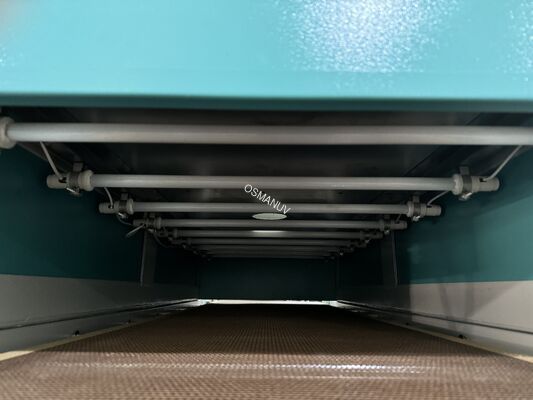

24 meters IR Drying Machine
Technical Parameters:
| No. | Parameter Name | Specification |
|---|---|---|
| 1 | Product Name | 24-Station Spin Coating Line |
| 2 | Gantry Robot Cycle Time | 40seconds/48 pieces |
| 3 | Spin Coating Stations | 24 Stations |
| 4 | IR Drying Tunnel Length | 24 meters (18m Heating + 2.5m Cooling+3.5m loding area) |
| 5 | Drying Temperature Range | Ambient -200°C Adjustable |
| 6 | Line Control System | Delta PLC & Servo System |
| 7 | Coating Uniformity | > 99% |
Application:
Perfect for applying biodegradable waterproof coatings to pulp molded food containers, plates, bowls, and other food service packaging products.
Customization:
This complete production line is customizable. We can adjust the spin coating parameters, drying temperature profile, and conveyor speed to match your specific coating material and production requirements.
Feature:
-
Complete automation from loading to drying minimizes labor costs
-
24-station design enables high-volume production capacity
-
Precision spin coating ensures uniform coverage on complex 3D shapes
-
Integrated IR drying with cooling zone for immediate packaging
Support and Services:
-
One-year warranty on entire production line
-
On-site installation and commissioning supervision
-
Lifetime technical support and operator training
-
Remote diagnostics and troubleshooting
Packing and Shipping:
-
Each component is disassembled and securely packed in weatherproof wooden crates
-
FOB shipping terms
-
60 working days delivery after order confirmation
-
Professional installation guidance provided
FAQ:
-
Q: What's the advantage of spin coating versus spray coating for pulp tableware?
A: Spin coating provides more uniform coverage with less material waste, particularly effective for complex-shaped items like bowls and containers. The process is highly customizable for different viscosity coatings. -
Q: Can this line handle different sizes of tableware simultaneously?
A: The system can be customized with quick-change fixtures to accommodate different product sizes, though optimal efficiency is achieved when running similar-sized products in batches.
