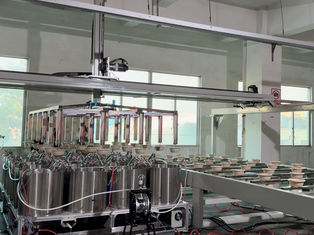

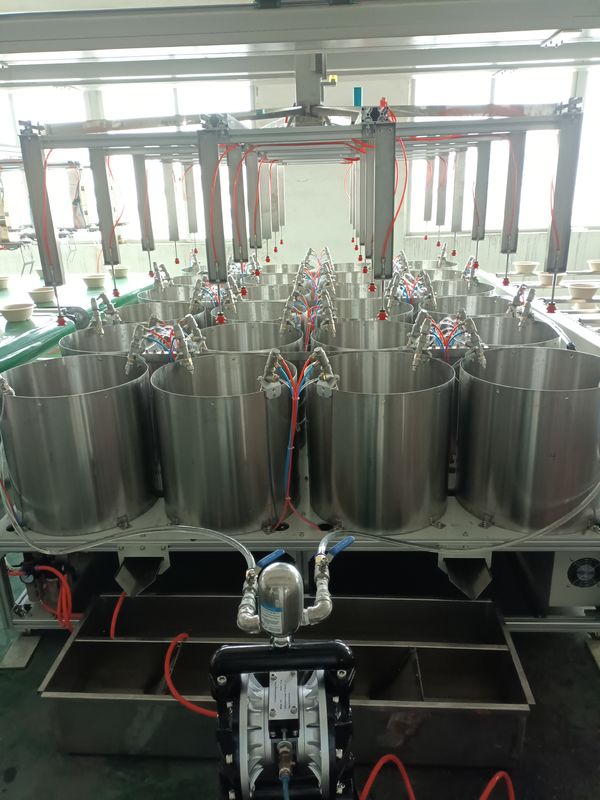

Internal Spin Coating Line for Pulp Molding Products - Fully Automatic Precision Coating System
Λεπτομέρειες:
| Τόπος καταγωγής: | ΚΙΝΑ |
| Μάρκα: | Osmanuv |
| Πιστοποίηση: | CE |
| Αριθμό μοντέλου: | OSM-XT-1024T |
| Έγγραφο: | PULP MOLDING AUTOMATIC SPIN...NE.pdf |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1 σετ |
|---|---|
| Τιμή: | negotiable |
| Συσκευασία λεπτομέρειες: | Ξύλιμο κουτί |
| Χρόνος παράδοσης: | 45 ημέρες |
| Όροι πληρωμής: | T/t |
| Δυνατότητα προσφοράς: | Διαπραγμάτευση |
|
Λεπτομερής ενημέρωση |
|||
| Αποδοτικότητα επίστρωσης: | Υψηλή απόδοση | Περιοχή επικάλυψης: | Προϊόν που σχηματίζεται από χαρτοπολτό μέσα |
|---|---|---|---|
| Πάχος επικάλυψης: | Ευκανόνιστος | Μέθοδος θέρμανσης: | Ηλεκτρικός |
| Ασφάλεια επιστρώματος: | Υψηλή ασφάλεια | Χρόνος στεγνώματος: | Ευκανόνιστος |
| Κόστος επικάλυψης: | Χαμηλό κόστος | Πεθαίνω: | Ευκανόνιστος |
| Επισημαίνω: | fully automatic pulp molding coating machine,internal spin coating line for pulp,precision coating system for pulp molding |
||
Περιγραφή προϊόντων
Internal Spin Coating Line for Pulp Molding Products - Fully Automatic Precision Coating System
Composition of Production Line
-
Automatic feeding and orientation system
-
Precision spin coating station (multi-axis)
-
Pre-treatment plasma cleaning unit
-
Flash-off and leveling section
-
UV/LED or thermal curing oven
-
Quality inspection system (vision-based)
-
Automated unloading and stacking system
-
Closed-loop viscosity control system
-
Environmental control enclosure
Product Description
This specialized spin coating line is engineered for applying uniform internal functional coatings to pulp molding products. The system ensures precise coating thickness distribution and excellent coverage on complex 3D geometries. The line is fully customizable to accommodate various product sizes, coating materials, and production requirements.
Technical Parameters
| Parameter | Standard Specification | Customization Options |
|---|---|---|
| Product Size Range | Ø50-200mm, H50-150mm | Customizable for larger sizes |
| Coating Thickness | 10-50μm (±2μm) | Adjustable thickness range |
| Production Capacity | 20-30 pieces/minute | Higher speed configurations |
| Rotation Speed | 500-3000 RPM | Programmable speed profiles |
| Coating Accuracy | ±1% CV | Enhanced precision options |
| Curing Method | UV/LED or thermal | Customizable curing systems |
| Control System | Siemens PLC + HMI | Multi-language interface |
| Power Requirement | 380V/50Hz/3Phase, 60kW | Adaptable to local standards |
Application
-
Food container internal moisture barrier coatings
-
Biodegradable packaging functional coatings
-
Industrial packaging protective layers
-
Medical pulp product special coatings
-
Electronic packaging static protection
Customization
We offer tailor-made solutions including:
-
Custom product handling fixtures and mandrels
-
Specific coating thickness and uniformity requirements
-
Integration with existing production facilities
-
Specialized coating material compatibility
-
Automated quality inspection criteria
Feature
-
Precision Coating: Multi-axis spin technology for complex geometries
-
Quick Changeover: Rapid tooling adjustment for different products
-
Material Saving: Precision coating amount control reduces waste
-
Energy Efficient: Low energy consumption design
-
Hygienic Design: Easy cleaning and maintenance
-
Smart Monitoring: Real-time process parameter tracking
Support and Services
-
Customized engineering and design services
-
On-site installation and commissioning
-
Comprehensive operator training program
-
24-month warranty on main components
-
Remote diagnostic and technical support
-
Spare parts supply guarantee
-
Process optimization services
Packing and Shipping
-
Export-standard wooden crates
-
Shock-absorbent and moisture-proof packaging
-
Professional logistics management
-
Worldwide shipping services
-
On-time delivery guarantee
FAQ
Q: What is the minimum order quantity for a customized production line?
A: We provide solutions for both pilot-scale and mass production needs, with customizable configurations for various production volumes.
Q: Can the line handle water-based coating materials?
A: Yes, the system is customizable to handle various coating types including water-based, solvent-based, and UV-curable materials.
Q: What is the lead time for a customized system?
A: Typically 16-20 weeks for standard customization, depending on specific requirements.
Q: Do you provide coating formulation support?
A: Yes, we offer technical support for coating material selection and process optimization.
Q: Can the line be integrated with existing pulp molding equipment?
A: Absolutely, we specialize in designing customized interfaces for seamless integration.
Q: What kind of training is provided?
A: We offer comprehensive training covering operation, maintenance, and troubleshooting procedures.
Q: Is the system compatible with different product shapes?
A: Yes, through customizable tooling and fixtures, we can accommodate various product geometries.
