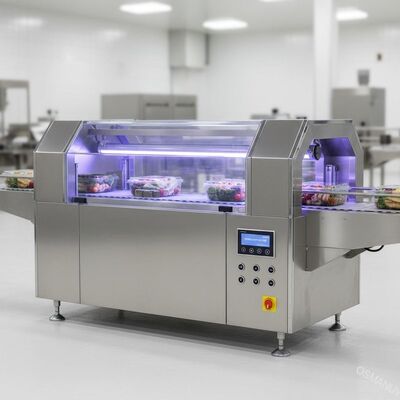

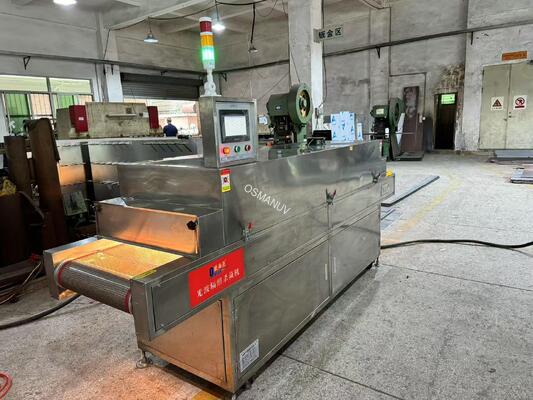

High-Intensity UV-C Tunnel Sterilizer for Transparent Food Packaging

High-Intensity UV-C Tunnel Sterilizer for Transparent Food Packaging

Target Keywords: high‑intensity UV tunnel steriliPackagingzer, transparent food packaging disinfection, inline UV-C conveyor surface treatment, high‑speed packaging sterilization, customizable belt width

Composition of Production Line

The complete continuous inline sterilization system comprises:

• Infeed Conveyor Belt — stainless steel wire mesh or PTFE belt, width customizable from 300 mm to 1,800 mm

• High‑Intensity UV-C Irradiation Chamber — 4 to 24 high‑power mercury or LED UV‑C lamps with 254 nm wavelength, optimized reflection system

• Dual‑Sided Sterilization Option — upper and lower lamp arrays for simultaneous top and bottom surface treatment of transparent materials

• Air Knife or Ionizing Blower (optional) — for dust and static removal before sterilization

• Exhaust & Cooling System — forced air or liquid‑cooled design for extended lamp life

• PLC Control Cabinet — industrial‑grade programmable controller with 10″ touchscreen HMI, 100+ recipe storage

• Real‑Time UV Intensity Monitoring System — sensors with feedback control, low‑intensity alarm

• Outfeed Conveyor — with product counting and optional automatic stacking unit

All product‑contact surfaces are constructed from SUS304 food‑grade stainless steel, fully compliant with food and pharmaceutical industry sanitation standards.

Product Description

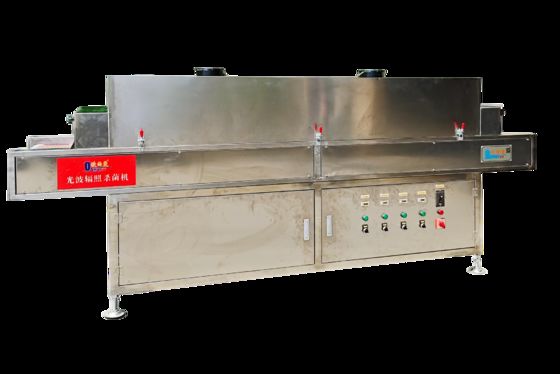

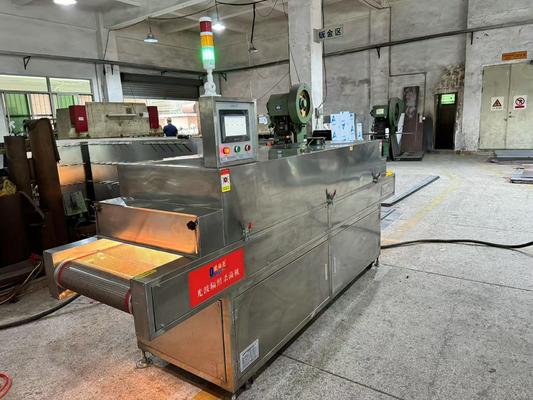

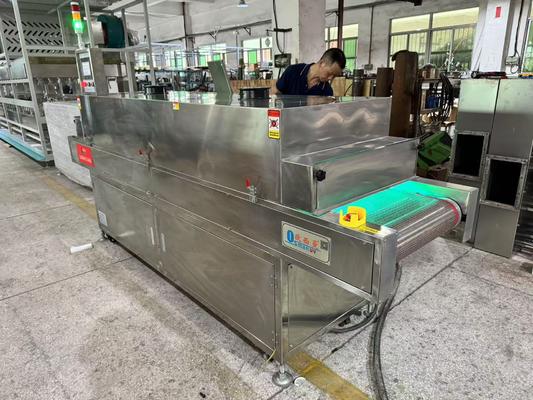

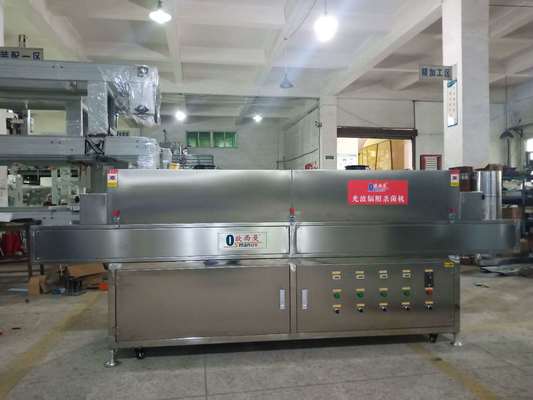

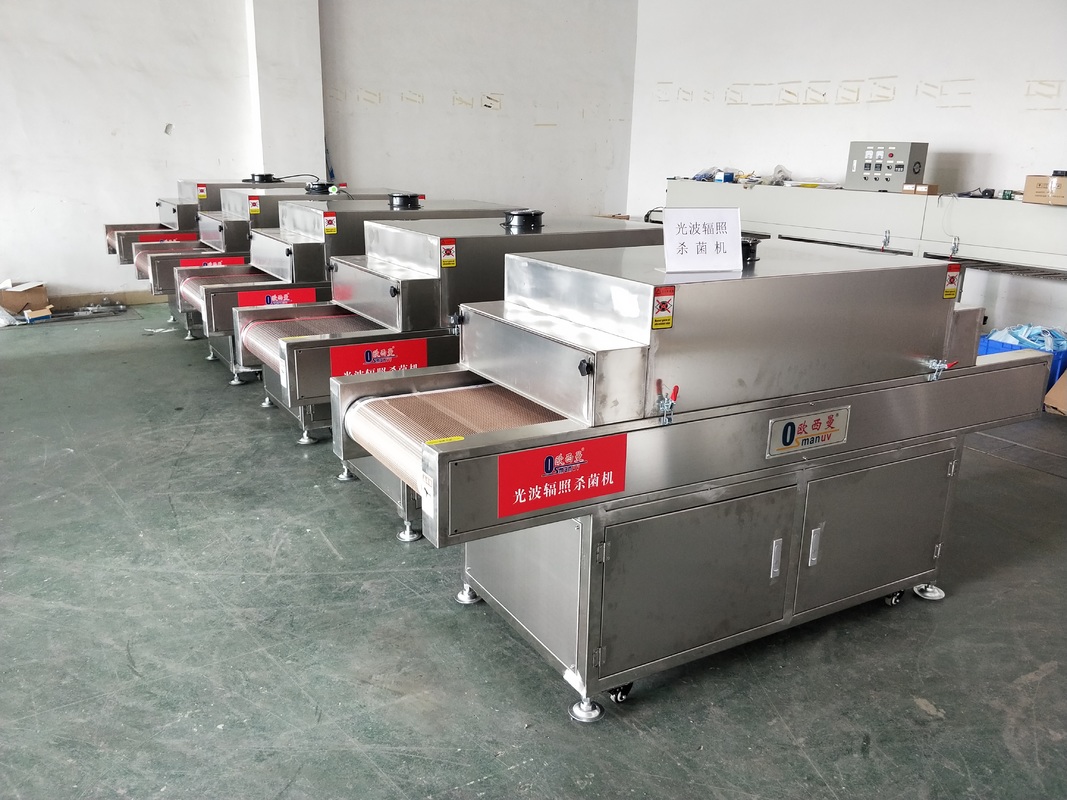

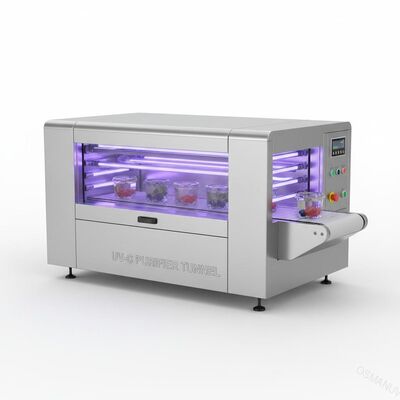

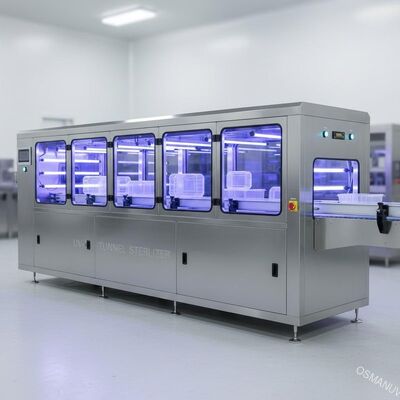

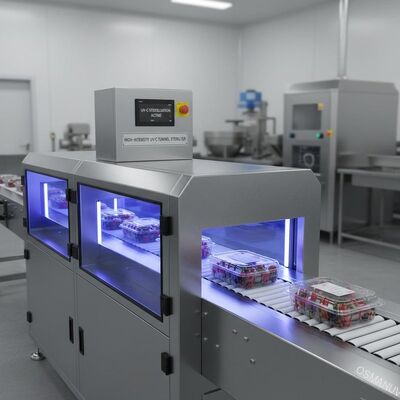

This High‑Intensity UV‑C Tunnel Sterilizer is purpose‑built for continuous, high‑speed surface disinfection of transparent food packaging materials, including films, trays, cups, lids, pouches, and bottles. The system utilizes 254 nm ultraviolet germicidal irradiation (UVGI), which penetrates the transparent substrate to destroy microbial DNA and RNA with exceptional efficiency. Independent research has shown that UV‑C treatments can achieve up to 6.9 log CFU reduction depending on cumulative fluence, and commercially proven systems routinely achieve ≥99.9% (3‑log) to ≥99.99% (4‑log) kill rates against common pathogens including E. coli, Salmonella, Listeria, and Aspergillus niger — with certain high‑performance configurations reaching >5‑log reduction against even highly UV‑resistant microorganisms-41-. The non‑chemical, dry, low‑heat process leaves no residue and does not alter food taste, texture, or nutritional value.

The tunnel features an optimized high‑reflectivity aluminum reflector system that directs UV‑C energy uniformly across the entire product surface, eliminating shadow zones in recessed geometries. The enclosed chamber design prevents UV‑C leakage, ensuring operator safety while maintaining consistent sterilization effectiveness. The conveyor belt speed is infinitely adjustable via frequency inverter, allowing precise control of exposure dwell time to match different packaging materials and target reduction levels.

For truly dual‑sided sterilization, the optional upper + lower lamp array configuration independently treats top and bottom surfaces simultaneously — particularly beneficial for transparent trays and clamshells where both internal and external surfaces require treatment.

Technical Parameters

Application

• Flexible packaging films — transparent polyethylene (PE), polypropylene (PP), PET, PLA films for flow‑wrap, form‑fill‑seal (FFS), and vertical form‑fill‑seal (VFFS) applications

• Thermoformed trays and clamshells — food trays for fresh produce, meat, seafood, bakery, ready‑to‑eat meals

• Rigid containers — plastic cups, pots, tubs, jars for dairy (yogurt, cream), desserts, spreads, and prepared foods

• Lidding films and foil covers — transparent lids for MAP (modified atmosphere packaging) applications

• Pouches and stand‑up bags — pre‑sterilization before filling

• Pharmaceutical blister packs — surface treatment of transparent packaging

• Cosmetic containers — tamper‑evident seals and primary packaging

Customization

We offer extensive and flexible customization to align precisely with your production requirements:

• Customizable belt width — from 300 mm (small cups) to 1,800 mm (wide film webs)

• Customizable number and arrangement of UV‑C lamps — single‑side (top or bottom), dual‑side (upper + lower), or angled configuration

• Customizable belt speed range — from 0.2 m/min for high‑dose applications to 30 m/min for high‑throughput lines

• Customizable UV dose recipe programming — match dosage precisely to packaging thickness, transparency, and target pathogen

• Customizable lamp technology — mercury (cost‑effective) or LED‑UV (instant on/off, mercury‑free, lower heat)

• Customizable cooling configuration — forced air for standard duty, water‑cooled for 24/7 continuous high‑temperature operation

• Customizable control system — manual (basic) to fully automatic PLC with MES/ERP integration, remote monitoring, and audit trail logging

• Customizable voltage and power supply — for any global location (110V to 460V, 50Hz or 60Hz)

• Customizable conveyor height and infeed/outfeed sections — seamless integration with existing filling, sealing, and packaging lines

• Optional 360° reflection enhancement — extended lamp housings with polished aluminum reflectors to treat hard‑to‑reach internal surfaces of irregular‑shaped transparent packages

Feature

• High‑intensity UV‑C output — industry‑leading irradiance up to 30,000 µW/cm² for rapid microbial inactivation

• Uniform irradiation — high‑reflectivity aluminum reflector system eliminates shadow zones; 6.9 log CFU reductions achievable

• Non‑thermal, chemical‑free operation — preserves food quality and safety, no residual chemicals or heat distortion

• Dual‑sided sterilization (optional) — simultaneous top + bottom treatment for transparent trays and open containers

• Real‑time UV intensity monitoring — continuous feedback with alarm alerts for maintenance

• Recipe management — store up to 100 sterilization profiles for different packaging materials

• Energy‑efficient design — inverter‑driven conveyor, high‑efficiency lamps, standby power‑reduction mode

• Easy cleaning and maintenance — swing‑open access doors, tool‑less lamp replacement, removable belt sections

• Full data traceability — USB/Ethernet export of sterilization logs (intensity, speed, dose) for quality assurance

• Fail‑safe safety system — door interlock + motion sensor + zero‑leakage design for operator protection

• Modular construction — add or remove lamp modules, expand tunnel length, or upgrade lamp technology without replacing entire system

Support and Services

• Lifetime free technical support — phone, email, and video call assistance with dedicated engineer

• On‑site installation and commissioning — engineers available for global deployment, including full system setup and calibration documentation (IQ/OQ)

• Operator training — comprehensive on‑site training for operators and maintenance personnel (up to 5 days)

• 2‑year comprehensive warranty — on UV‑C lamps, control system, conveyor, and all electronic components; extended warranty options available

• Spare parts supply — guaranteed availability for 10+ years; 48‑hour express shipping for critical components

• Preventive maintenance program — annual on‑site inspection, lamp replacement planning, UV intensity calibration, and operational audit

• Remote diagnostics — secure VPN access to PLC for real‑time troubleshooting and software updates

• Free sterilization validation testing — send your transparent packaging samples; we provide test report with optimized parameters

• Process optimization consulting — assistance with regulatory compliance documentation (FDA, EU, local food safety), validation protocol development, and line integration

Packing and Shipping

• Packed in heavy‑duty export wooden cases with VCI anti‑rust film, desiccant bags, and custom foam padding

• Shipped in modular sections (main tunnel body, conveyor sections, control cabinet, lamp modules) for container loading (20ft, 40ft, or 40ft HC containers)

• Sensitive UV‑C lamps and control instruments packed separately with shock‑absorbing and anti‑static protection

• Includes: English manual, CE certificate, electrical wiring diagrams, calibration certificates (UV intensity), tool kit, complete spare parts kit (lamps, quartz sleeves, belt links, sensors)

• Shipping terms: FOB / CIF / DAP / DDP by sea, air freight, or land transport

• Lead time: 25 days for standard configuration; 35‑50 days for fully customized systems

FAQ

Q1: Can this UV‑C tunnel sterilize both the inside and outside of a transparent clamshell container in a single pass?
A1: Yes. The upper‑and‑lower lamp array (dual‑side option) irradiates the external surfaces from above and internal surfaces through the transparent material from below, achieving comprehensive, 360° coverage — all within the same pass.

Q2: What is the typical UV dose required for a 4‑log (99.99%) reduction of common foodborne pathogens on transparent packaging?
A2: A dose of 20‑40 mJ/cm² generally achieves 4‑log reduction for susceptible organisms like E. coli and Salmonella. More resistant pathogens (e.g., L. monocytogenes) may require 50‑80 mJ/cm², while highly resistant spores (Bacillus spp.) can need 100‑200 mJ/cm². Our systems provide adjustable dose control to accommodate these varying targets.

Q3: How does UV irradiation differ in effect between transparent and opaque printed packaging areas?
A3: Printed ink areas have reduced UV‑C transmission. We recommend placing lamp arrays to preferentially treat transparent zones, extend dwell time, or configure higher‑intensity emitters to compensate — all achievable via customizable recipe adjustments.

Q4: Does the sterilization tunnel produce any harmful ozone?
A4: The optional 185 nm ozone‑generating lamps can be entirely bypassed or excluded; our standard 254 nm UV‑C lamps produce no significant ozone. Optional ozone‑free lamp configurations are also available upon request.

Q5: What is the standard lamp replacement interval?
A5: Mercury lamps provide 8,000‑10,000 hours of operation; LED‑UV modules provide ≥20,000 hours to L70. The system tracks cumulative operating hours per lamp and alerts when replacement is due. Replacement can be performed without interrupting production line operation (hot‑swappable lamp trays).

Q6: Can the system be retrofitted into an existing production line without major modifications?
A6: Absolutely. Conveyor height, width, control interface signals (dry contacts, Ethernet/IP, Profinet), and infeed/outfeed conveyor dimensions are fully customizable to match your existing line and upstream/downstream equipment. Retrofits are typically completed with minimal production downtime (2‑4 days).
